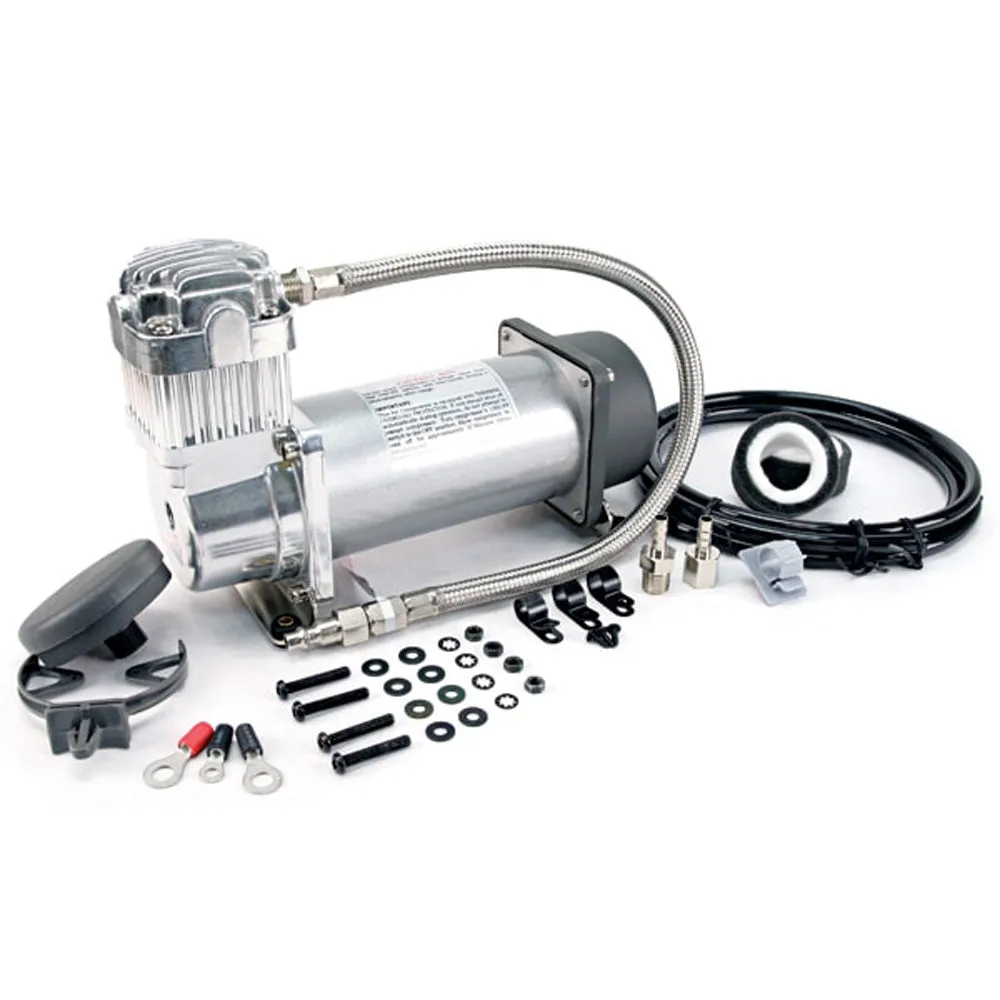

400H is a hardmount compressor that pumps a massive 2.30 CFM flow at zero PSI head pressure. The 400H comes with a built-in, moisture resistant ON/OFF power switch. Features include a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation.
Features:
- Thermal overload protector.
- Check valve.
- Vibration isolators.
- Mounting hardware.
- 1/4″ quick connect stud.
- Stainless steel braided leader hose.
- Air line for remote mount air filter.
- Remote mount air filter assembly.
- (2) replacement air filter elements.
- Installation instructions.
Specifications:
- 12-volt.
- Permanent magnetic motor.
- Duty cycle: 33% @ 100 PSI.
- Max. working pressure: 150 PSI.
- Max. amp draw: 30-amps.
- Ingress protection rating: IP54.
- Max ambient temp: 158°F.
- Min ambient temp: -40°F.
- Dimensions: 10.08″L x 3.94″W x 6.75″H.
- Net weight: 8.95 lbs.
Recommended components:
- Coil hose (P/N 00025).
- Braided coil hoses (P/N 00027, 00029).
