HM4X4 is a highly respected Italian manufacturer of aftermarket components for off-road driving and racing.

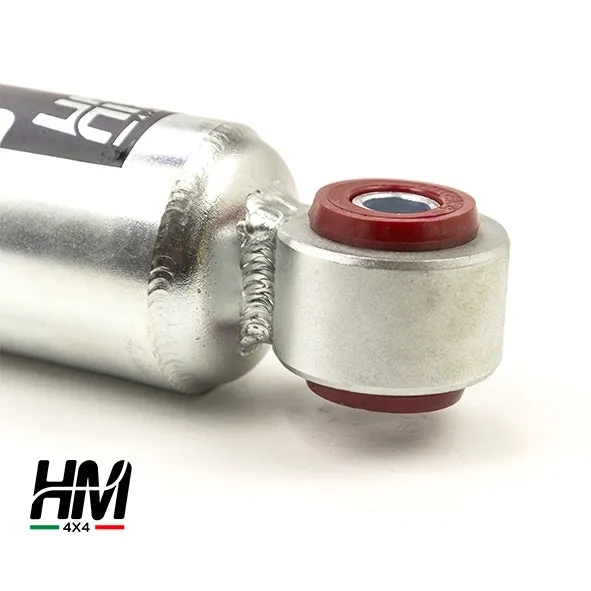

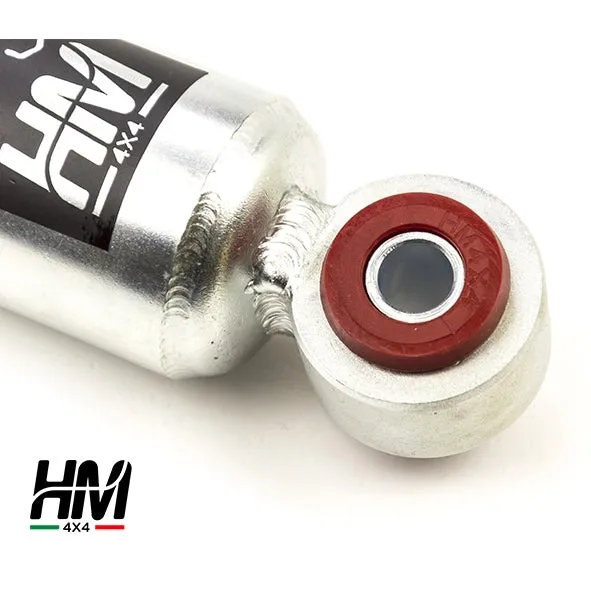

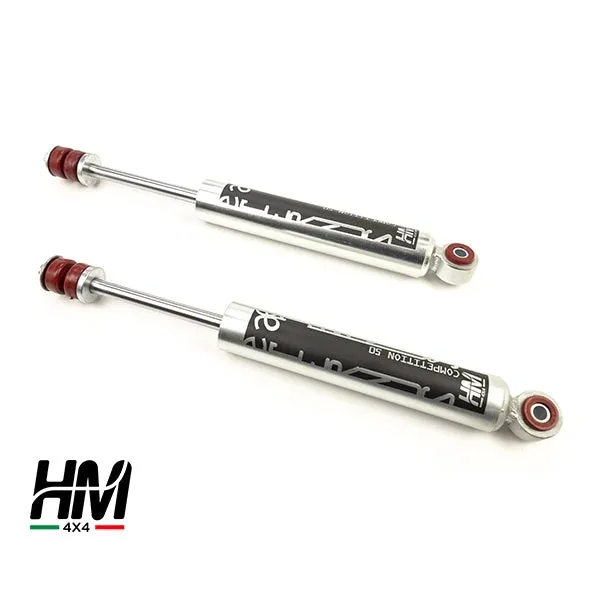

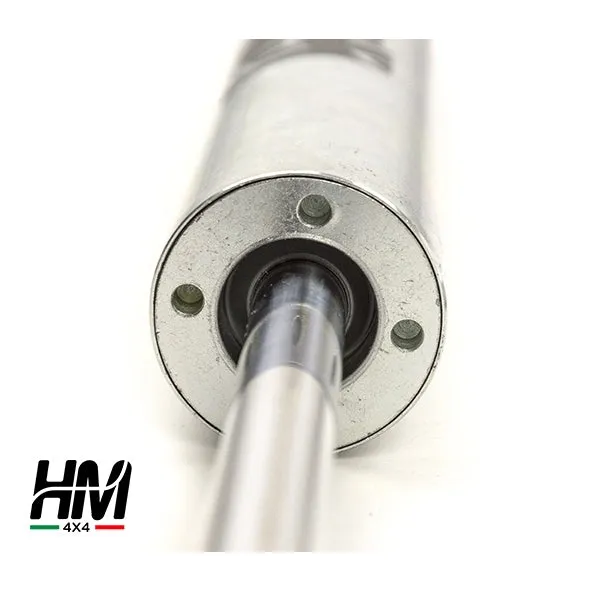

HM4X4 120mm Front Shock Absorbers for Suzuki Jimny (2018 )

HM4X4 shock absorbers are manufactured in Italy using internally lapped steel tubes that are phosphated and finished with an epoxy coating to prevent corrosion.

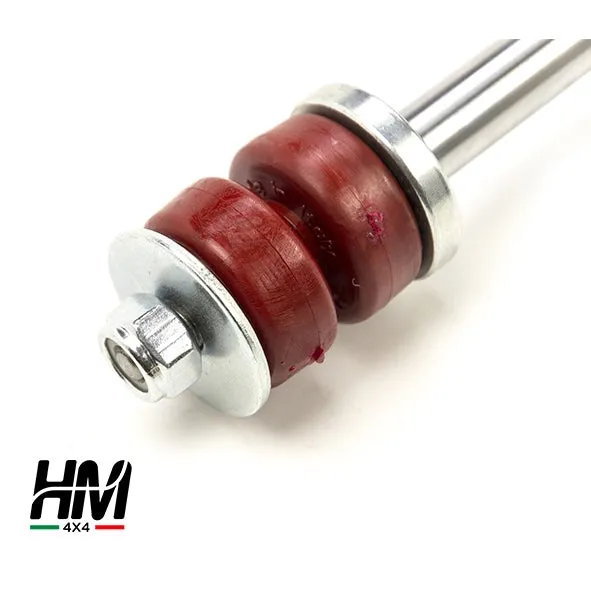

Each HM4X4 shock absorber has an internal bump stop resistant to loads up to 5000kg, with an external polyurethane bump stop installed to slow down the final 10mm of travel in order to prevent damage to the vehicle.

Rothen high viscosity shock absorber oil is used, which is suitable for use in conditions up to 200°C.

Specification:

Body diameter: 50mm
Shaft diameter: 16mm
Length fully open: 560mm
Stroke: 210mm
